Ella’s Royal is vacuum formed from a solid acrylic sheet. Under the shell is a stainless steel frame reinforced with multiple fiberglass mesh and gelcoat layers. The Royal’s main feature is the U-shape outward swing door made from brushed stainless steel and a frosted tempered glass window. The lever lock creates a secure, watertight door seal. Attached to the deck is our patented 360° swivel tray, allowing bathers to keep important items conveniently close.

The 5-Piece fast-fill faucet has: 2 temperature levers, a diverter lever, a mounted faucet and a pull out multi-functional hand shower. It has a fill rate of 18 GPM, based on plumbing conditions. While the tub fills, enjoy the comfort of the Heated Seat & Backrest. The Royal also comes with Ella's Dual Drain Technology- the fastest gravity driven drain in the industry. It consists of two 2” gravity driven drains with four 2” outlets, 2 overflows and 2 openers.

Hydro Massage System includes: a hydro pump with an in-line water heater, eco-friendly ozone sterilization system, hydro massage intensity dial, and strategically positioned hydro jet system for a targeted, effective massage. The in-line water heater helps maintain the water temperature at constant level. The in-line water heater and ozone sterilization automatically engage when the hydro massage is turned on. The Royal has 14 strategically placed hydro jets: 10 upper, fixed jets provide relief to your back, hips and thighs, and 4 lower, adjustable jets massage your feet and calves. The Air Jet Massage System includes an air pump with a 3-speed variable, strategically positioned air jets, and an auto-purge maintenance system. The Royal has 16 air jets to create a gentle massage: 8 upper, fixed flat jets provide relief to your back, hips and thighs; and 8 floor jets massage your feet and legs. Additionally, Chromatherapy will dazzle your tub with multicolor LED lights. Stream one color, or allow it to cycle through all 8.

• Dual Drain Technology features 2 individually controlled 2 in. drains with easy to turn levers. 4 2” outlets allow for the fastest gravity driven drain in the industry.
• Hydro massage comes with 10 fixed and 4 adjustable jets. Includes an intensity dial control, in-line water heater, and ozone sterilization to clean the system and water.
• Air massage comes with 16 strategically placed jets. Includes a 3-speed variable push control and auto purge to clean the system.

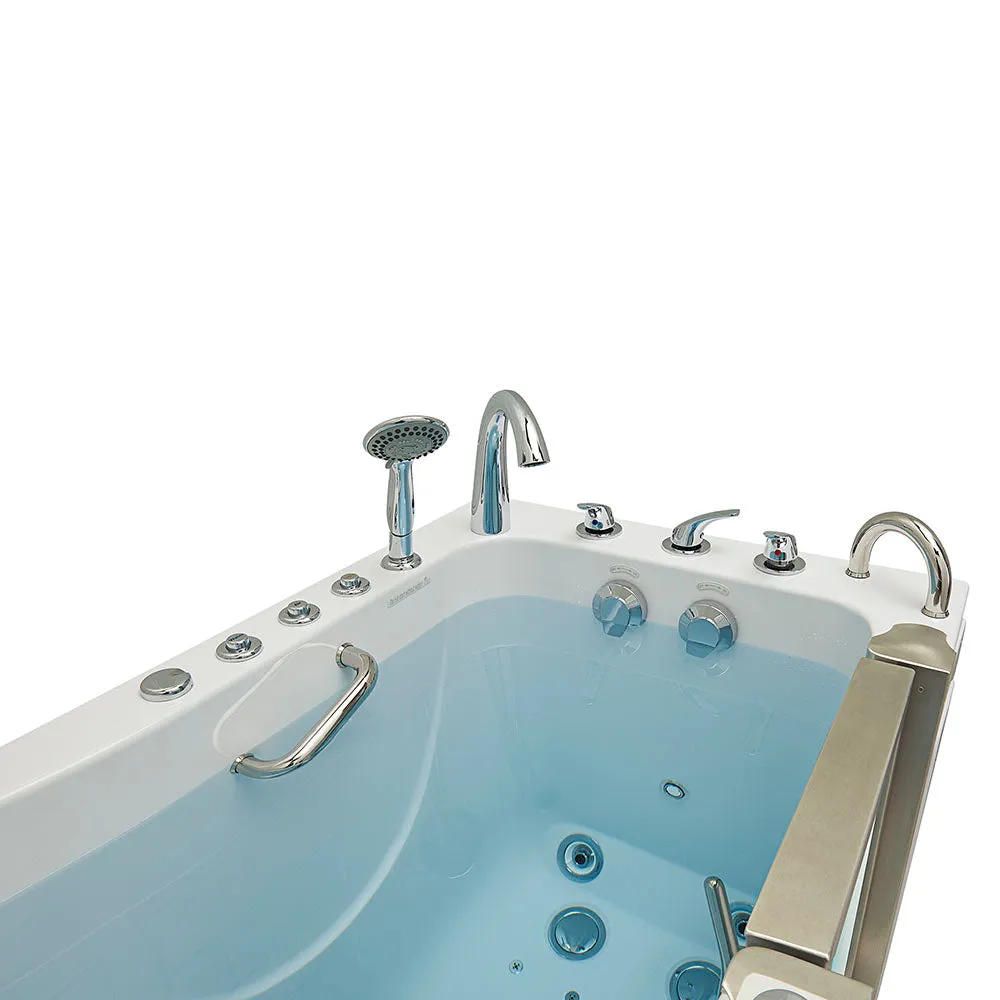

• Ella 5 Piece Fast-Fill Faucet fills up to 18GPM and has a mounted faucet, pull out multi-functional hand shower, temperature and diverter levers in chrome finish with two 5’ long supply lines.
• LED Chromatherapy features multicolor LED lights powered, creating a relaxing and harmonious experience at the push of a button.
• 360° swivel tray can hold your beverage or valuables while you bathe.
• Tub features a 24” wide seat. Heated seat and backrest provides added comfort when filling the tub.
• Brushed stainless steel and frosted tempered glass door with an extended lever lock. Right inward swing door.
• Low step-in 6 in. threshold and a textured slip resistant floor. Removable toe kick access panel allows a lower threshold.
• Size: 31.75 in. x 52.25 in. x 38 in. (fits standard 60 in. opening with extension panel)
• Cast acrylic high gloss finish easy to clean shell, fiberglass gel-coat reinforced.
• 2 stainless steel grab bars. Detachable wide backrest for comfortable back support.
• Includes 2 overflows, two 5 ft. incoming supply lines and 2 drain elbows.
• Rugged stainless steel frame which distributes weight over adjustable leveling legs.
• By utilizing the wall extension kit and the end access panel(s), your Ella walk-in bath can easily be installed into a 2 or 3-wall setting and even has the capability to be a freestanding unit so it retro-fits into almost any existing bathroom.
• Limited lifetime warranty*
